2022 Medical Tablet PC Display Data Terminal Industrial Embedded Monitor Fanless Desktop PC 19.0" Intel I5 I7 8GB 2* RS232 RJ45 _iimport XDroneTabletS/hoodmat.com
₦497,090.96
Availability:
Ex Tax: ₦497,090.96
Seller:thescreen IncBest Price Guarante: No
Return Policy: No
Product/Service Coverage: No
Safe Service Guarantee: No
Product Code: 2022 Medical Tablet PC Display Data Terminal Industrial Embedde
2022 Medical Tablet PC Display Data Terminal Industrial Embedded Monitor Fanless Desktop PC 19.0" Intel I5 I7 8GB 2* RS232 RJ45 _iimport XDroneTabletS/hoodmat.com
| System | |||||
| Model | KCT-1701.KCT-1901 | ||||
| Processor | Onboard Intel Celeron J1900/4th/6th/7th/8th Gen.Core i3/i5/i7 CPU (Optional) | ||||
| System Memory | |
||||
| Ethernet | 2 x GbE RJ45 Intel i211 |
||||
| I/O Port | 3x USB2.0,1x USB3.0,1xUSB2.0 dongle 2x DB-9 COM1&COM2,RS-232/422/485 2x 3-wire COM3&COM4 RS-232/485 with terminal block 2x 3-wire COM5&COM6 RS-232 with terminal block 1 x Audio Line-out 2x 8Q 1W Audio AMP out 1 x Remote switch with terminal block 1 x AT/ATX switch 1x HDMI 1x 14bit GPIO (Optional) |
||||
| Storage Disk Driver | 1x MSATA 1x SATA (2.5"HDD ) lx M.22 ( not available on J1900 CPU ) |
||||
| Expansion Slot | Mini-PCle x1 full size with SIM Card for 3G/4G (Optional) Mini-PCle x1 half size for WIFI/BLT (Optional) |
||||
| Watchdog timer | 255 Levels | ||||
| OS | windows 7/8/10,WES7,Linux (Optional) | ||||
| Mechanic al | |||||
| Construction | Aluminum | ||||
| Mounting | VESA 75/ Panel mount | ||||

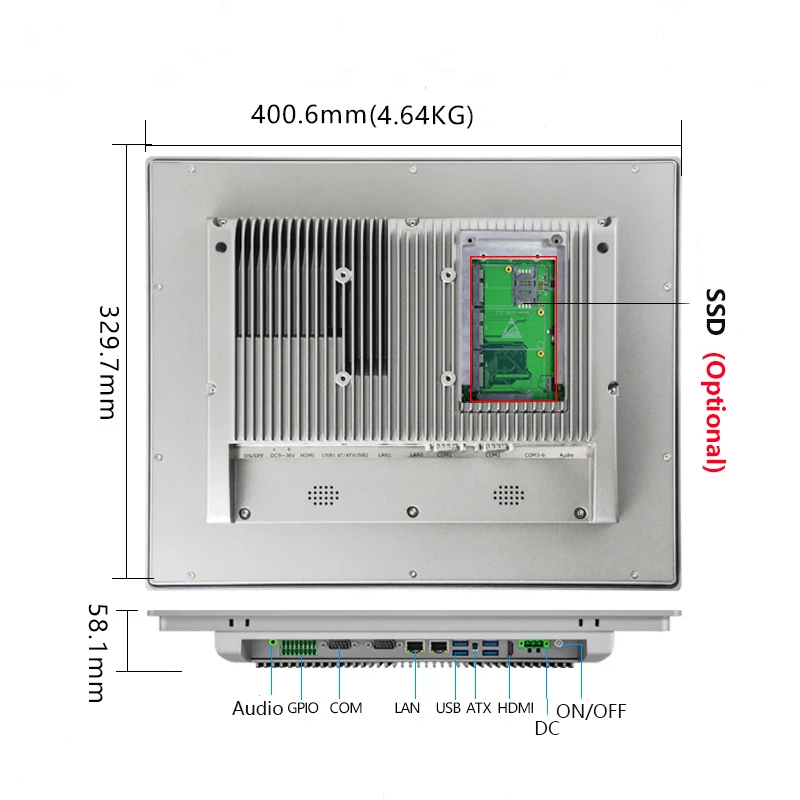

| Dimension | 400.66x329.76x58.10mm | ||||
| Net Weight | TBD | ||||
| Environmental | |||||
| Operating Temperature | -20°C ~ 60 °C | ||||
| Storage Temperature | - 30°C ~ 70°C | ||||
| Storage Humidity | 10~90% @30°C, non-condensing | ||||
| Power Supply | |||||
| DC Input | DC 9 ~ 36V with 3-pin terminal block | ||||
| LCD | |||||
| Display Type | 17" /19" TFT-LCD(Optional) | ||||
| Max.Resolution | 1280 x1024 | ||||
| Max.Colors | 16.7M | ||||
| Luminance | 250 cd/m² | ||||
| Viewing Angle(CR>=10) | -8 5 ~ 8 5 ° ( H) , - 8 5 ~ 8 5 ° ( V ) | ||||
| Back Light | LED | ||||
| Back Light MTBF (hours) | 30,000 | ||||
| Touch Scr een | |||||
| Type | 5-wire, analog resistive | ||||
| Light Transmission | 85% | ||||
| Life Time | 10 million activations | ||||
